Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: Stepmores
Model Number: 1325
Voltage: AC220V/380V /-10%
Rated Power: 100A
Dimension(L*W*H): 3*2.06*1.4m
Weight: 1000kg
Certification: CE, ISO for 1325 cnc plasma cutting machine
Warranty: 1 Year for 1325 cnc plasma cutting machine
After-sales Service Provided: Engineers available to service machinery overseas

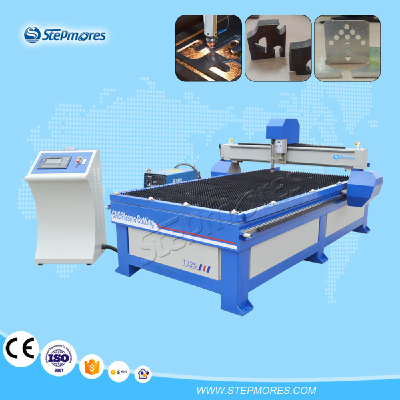

Machine name: SM1325 cnc plasma cutting machine
Working area: 1300*2500mm
Power: 60A 100A 160A 200A
Cutting thickness: 0-30mm
Cutting speed: 0-8m/min
Moving speed: 0-50m/min
Drive type: stepper
Transmit: XY gear rack , Z ballscrew
Interface: USB port
Working mode: Untouched Arc Striking Arc Pressure Adjuster
Packaging & Delivery
Packaging Details: | 1300*2500mm cnc machine plasma 60A 100A 160A 200A plasma cutting machine 1. outside package: standard export plywood case 2. inside package: stretch film 3. package size: 3.15*2.21*1.61m 4. gross weight: about 1000kg |
---|
Delivery Detail: | Shipped in 10 days after payment |
---|
1300*2500mm cnc machine plasma 60A 100A 160A 200A plasma cutting machine
Warm tip: All the working area and specifications can be customized according to your requests.
Working area: 1300*2500, 1300*3000, 1500*3000, 2000*3000mm etc.
Power: 60A, 100A, 160A, 200A
Product Description
Features:
1. Y axis adopts double motors with double drivers. all axis adopt square rail, double four ball slider, moving smoothly, with high accuracy.
2. Light beam design, good rigidity, light weight and tiny moving inertia.
3. Excellent performance on cutting metal. stainless steel plate etc.
4. Work together with other advertising machines, such as CNC router and so on, improving working efficiency
5. Small cutting gap, no residua high cutting speed, high accuracy and low cost advanced CNC control system, Auto Arc, arcing success rate over 99%
6. Support G code files of ARTCAM, Type3 software.also support DXF files of Autocad by transfer software. Control system supports U disk file transfer, easy operation.
7.Adopt well-known domestic plasma power supply and cutting torch, Hypertherm power is optional.
Technical parameters:
Machine model | SM1325 cnc plasma cutting machine |
Working area | 1300*2500mm |
Plasma Generator | 100A (60A 160A 200A optional) |
Working mode | Untouched Arc Striking Arc Pressure Adjuster |
Control system | Start system with Automatic torch height control |
Interface | USB port |
Cutting thickness | 0-30mm according to generator power |
Cutting speed | 0-8m/min |
Moving speed | 0-50m/min |
Automatic height adjust | Yes |
Machine structure | thick steel tube welding |
Rail type | Hiwin linear rails |
Drive type | Stepper |
Transmit | XY gear rack, Z ballscrew |
Power | AC380V±10%, 50-60Hz |
Application | Metal: iron, steel, carbon steel, stainless steel, etc. |
Remarks | Machine can be customized as you required. |
Our Services
1. service before sales: our salesman will try to know your requirement about our cnc router specificaiton and what kind of work you will do. then we will offer our best solution for your requirement. then it can confirm each customer can get their real needed machine.
2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give their suggestions.
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will check when the machine arrive your sea port and estimated date of arrival. so customers can know when it will arrive and make enough preparation.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing.
6. service of teaching: there are some manual and video about how to use machine, if some customers have question about it. we will have professional technician to help them to install and teach how to use through skype ,calling, vedio or mail.
7. service of warranty: we offer 12 month warranty for whole machine and 6 month warranty for spindle. if any parts of our machine is broken. we will replace it for free.
8. service in longterm: we hope every customer can use our machine easliy and have a fun of it. if customers have any problems of machine in 3 or more years, they can contact us. we will always here waiting for you.
FAQ
1. how should i pay for my order ? what is the procession of this purchase ?
we accept T/T by bank. you can do 30% down payment at first, then we will start to make production. when the machine is ready, we will take pictures to you, and then you can do the ballance. after we got your payment, we will send the machine to you.
2. how about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine, how to use machine, how to let machine work and so on. Usually we will teach you how to do by email or by skype, our engineer has many years of experience for cnc machine service, he can speak very good english, so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer. as only the machine made by ourself, quality can be trusted, and most important thing is that we can do better serivce after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
4 How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to
client's specific requirements, it would be 15 to 30 days.
