Quick Details
Condition: New
CNC or Not: CNC
Place of Origin: Shandong, China (Mainland)
Brand Name: stepmores
Model Number: SM-4040M
Voltage: AC220V/50Hz
Power(W): 2.2KW
Dimension(L*W*H): 0.88*0.94*1.52m
Weight: 90KG
Certification: CE ISO
Warranty: 1 year for cnc router 4040
After-sales Service Provided: Engineers available to service machinery overseas
Driver: Stepper motor
Control system: DSP
Structure: Table moving type
Spindle power: 2.2kw water cooling
Transmission in X, Y axis: Ball Screw
Guide rail: square rails
Motor: Stepper Motor
Software: Artcam/Mach3/Type3
Working area: 400X400mm
working precision: 0.05mm
Packaging & Delivery
| Packaging Details: | standard export wooden case with fumigation |
|---|
| Delivery Detail: | Shipped in 10 days after payment |
|---|

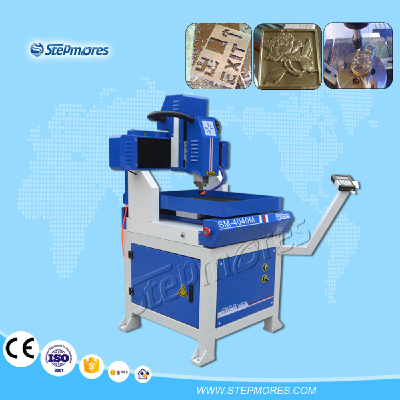

400*400mm usb port mini metal engraving 3d cnc router 4 axis
Product Description
Features of mini cnc router 4040 :
1. X Yuse Linear orbit.C7 precision Taiwan TBI ballscrew make cnc router working very
stable and more durable.
2. Iron casting body, whole body wont transform for long use.
3. unique designed for three dimensional cameo engraving of the classical padauk furniture.
4 dust proof to keep the dust away. With gantry moving
5 High subdivision stepper motor (optional servo motor )with high speed,low noise,running firmly ,and powerful torque cutting.
6 Adopts brushless water cooling spindle with frequency conversion, low noise ,the service
life is long ,and rotated steadily (optionl air cooling system)
7 The limit sensor for each side.calibrator(tool sensor),the LED light below the spindle
8 Compatible software:compatible with the software which can change the working file into
G code.
9. DSP controller , can control the machine without computer ,mach3 control system /NC
studio for choice.
Specifications of mini cnc router
X Y Z axis travel distance | 400x400x150mm |
feeding height | 150mm |
table size | 440x440mm |
Spindle power | 2.2kw water cooling (0-24000RPM) |
Rail type | square rails on 3 axis of cnc router
|
Control system | DSP controller (A11s) |
Drive type | Stepper |
Transmit | ballscrew |
Table type | Iron casting with T slot clamping |
Max travel speed | 15000mm/min |
Working precision | 0.05mm |
power | AC220V±10% / 50~60Hz |
Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc |
command code | HPGL, G code |
Machine / packing size | 0.71*0.82*1.32m/ 0.88*0.94*1.52m |
Net / Gross weight | 180kg /220kg |
Mini cnc router 4040 applicable
1.Stepmores cnc router 4040, with high efficiency and accuracy for wood/MDF/acrylic/
metal. passing CE, ISO.
2.can be used for cutting and engraving furniture, wood door, cupboard door and window,
beside cabinet, ect., Circuit board,the LED display, 3D engraving and cutting. such as cello,
violin panel and head, guitar,
Packaging
we use strong non-fumigation wooden case. we also buy the insurrance for the shipping and
cnc router machine.
Firstly, packed the cnc router machine with plastic sheet for clearing and damp proofing.
Secondly, then put the cnc router machine in the plywood case for safety and clashing.
Thirdly, transport the plywood case into the container.
Our Services
1before-sale,we will try to know your requirement about our cnc router specification and
what kind of work you will do .then we will offer our best solution for your requirement.
2.during production: we will send photos of machines during making. so you can know more
details about the procession of making your machines.
3.before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake. Machine will be adjusted before it is delivered.
4.after shipping: we will sent out the documents for your customs clearance ASAP . and check
the approximate date of arrival.
5.after arrival:
we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.about teaching: there are some manual and video about how to use machine , if you have question about it.we will have professional technicist to help you install and teach how
to use through skype ,calling, video or mail.
7. about warranty: we offer 1 year warranty for whole machine and half year warranty for
spindle. if any parts of our machine is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a fun
of it.if you have any problems of machine in 2 or 3 , 5 years , you can contact us .
we will always here waiting for you.
FAQ
1. how should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank.you can do 30% prepayment at first, then we'll start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.after
we got your payment. i will send the machine to you.
2. how about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine, how to use
machine.how to let machine work. and so on. usually we will teach you how to do by email or by
skype . our engineer has many years of experience for cnc machine service .he can speak very
good english , so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself,quality can be trusted,and most
important thing is we can do better serivce after sales. we know how to fix the problem in each
parts easliy. so welcome to visit to our factory
4 How long is the delivery time?
For standard machines, it would be in 7-10 days; For non-standard machines and customized
machines according to client s specific requirements, it would be 15 to 30 days.
5 How about the documents after shipment?
After shipment,we'll send all original documents to you by DHL,including Packing list,Commercial
Invoice, B/L, and other certificates as required by clients.
