Quick Details
Condition: New
CNC or Not: CNC
Place of Origin: Shandong, China (Mainland)
Brand Name: stepmores
Model Number: SM-6060
Voltage: AC220V/50Hz
Power(W): 2.2KW
Dimension(L*W*H): 0.88*0.94*1.52m
Weight: 150KG
Certification: CE ISO
Warranty: 1 year for cnc router 6060
After-sales Service Provided: Engineers available to service machinery overseas
Driver: Stepper motor
Control system: DSP
Structure: Table moving type
Spindle power: 2.2kw water cooling
Transmission in X, Y axis: Ball Screw
Guide rail: square rails
Motor: Stepper Motor
Software: Artcam/Mach3/Type3
Working area: 400X400mm
working precision: 0.05mm
Packaging & Delivery
| Packaging Details: | standard export wooden case with fumigation |
|---|
| Delivery Detail: | Shipped in 10 days after payment |
|---|

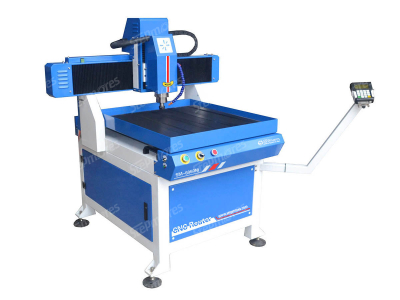

600x600 Dog tag CNC Engraver machine Mini Cnc Router Price
Do you want to own a durable CNC Router with a solid lathe,
high working efficiency and precision, meanwhile with the perfect after-sales service?
Then Jinan Stepmores cnc router industry and trade Co., Ltd will be your best choice.
Product Description
Features of mini cnc router 6060 :
1. X Yuse round orbit.C7 precision Taiwan TBI ballscrew.strong rails and
high precision ballscrew make cnc router working very stable and durable.
2. Iron casting body, whole body wont transform for long use.
3.cnc router with unique designed for three dimensional cameo engraving
of the padauk furniture.
4 dust proof to keep the dust away. With gantry moving
5 High subdivision stepper motor (optional servo motor )with high speed ,
low noise ,running firmly ,and powerful torque cutting.
6 Adopts brushless water cooling spindle (optionl air cooling system)with
frequency conversion.With low noise ,the service life is long ,rotated steadily
7 It contains the limit sensor for each side.calibrator(tool sensor),the LED light below the spindle
8 Compatible software: it is compatible with the software which can change
the working file into G code.
Specifications of mini cnc router
X Y Z axis travel distance | 600x600x150mm |
feeding height | 150mm |
table size | 660x660mm |
Spindle power | 2.2kw water cooling (0-24000RPM) |
Rail type | square rails on cnc router
|
Control system | DSP controller (A11s) |
Drive type | Stepper |
Transmit | ballscrew |
Table type | Iron casting with T slot clamping |
Max travel speed | 15000mm/min |
Working precision | 0.05mm |
power | AC220V±10% / 50~60Hz |
Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc |
command code | HPGL, G code |
Machine / packing size | 0.71*0.82*1.32m/ 0.88*0.94*1.52m |
Net / Gross weight | 180kg /220kg |
1.Stepmores cnc router 4040, with high efficiency and accuracy for wood/MDF/acrylic/metal.passing CE, ISO.
2.can be used for cutting and engraving furniture, wood door, cupboard door
and window, beside cabinet, ect., Circuit board,the LED display, 3D engraving
and cutting. such as cello,violin panel and head, guitar
Company Information
Jinan chentuo industry and trade co.,ltd , was established in 2011.
we are well known for our superior quality and service in the field of engeering and
manufacturing of CNC Router and Laser Equipment that includes CNC Router,Laser
engraving machine,CNC Laser cutting machine, CNC Plasma metal cutting machine
and so on.
our company is famous for high quality and best after sales service as the competiive
price. our products are widely used in the following industry, such as woodworking,
advertising, artmarking, model,electric,CAD CAM industry Model, clothing, packing
printing, marking,laser sealing and so on.
our company has sold cnc machines to a lot of countries such as US,Argentina,France,
Columbia,UK, EU,Australia, Russia, spain, Morocco, Esthonia, and so on.
our company managing idea is improving the high quality products for customers.we
are searing the distributors around the world, hope we are always looking forwardto
make cooperation to develop market.
